Planar Luminate Ultra W Series

Outdoor MicroLED Video Wall

Planar® Luminate™ Ultra W Series MicroLED video wall displays are designed to bring high-detail imagery and video to outdoor environments with close viewing distances. Their 16:9 aspect ratio is ideal for Full HD and 4K cinema and sports media, while fine pixel pitch supports comfortable viewing from as close as 8 feet.

High brightness ensures visibility even in direct sunlight, and waterproof Glue-On-Board (GOB) technology withstands harsh weather, easily facilitating outdoor applications. They shine in high ambient light indoor spaces as well.

  • Complete 115", 145", 173" & 231" sizes
  • Customizable with 1.3, 1.6 & 2mm pixel pitches
  • 3,000-nit brightness
  • Protective GOB coating
Unveiling Planar Luminate Ultra W Series

At InfoComm 2024, Sr. Director of Product Management and Training Robert Detwiler spoke with rAVe Pubs about the new Planar Luminate Ultra W Series fine pitch outdoor MicroLED video walls.

Product Highlights

Be The Light Vvr Install 706X530 Image

Bright in the Light

The displays are suitable for daylight applications with high 3,000-nit brightness ideal for sports, concerts and digital signage even in direct sunlight.

Watt Flip-chip Highlight 706X530 Image

MicroLED Might

At less than half the size of standard LEDs, MicroLEDs deliver more brightness, excellent color uniformity, better overall contrast and deeper blacks. They are also more energy efficient and produce less heat at the same brightness.

Luminate Pro Pool Weatherproof 706X530 Image


The displays feature an IP65 Ingress Protection Rating which means they are dust tight and safe from powerful water jets, making them an exciting and viable option even in harsh outdoor weather.

Planar Luminate Ultra GOB Highlight 706X530 Image

More Protection

The displays have a protective coating that fills the tiny gaps between LEDs adding ruggedness and weather resistance. The coating also increases visual contrast for deeper black levels.

Front Service 45R 706X530 Image

Easy Access

Front-side installation and service shrink the overall video wall footprint and virtually eliminates servicing space needed behind the wall.

3 Year Warranty Icon 322X242 (1) Image

Added Assurance

Planar LED video walls feature a 3-year LED Standard Limited Warranty offering additional peace-of-mind investment protection.

Accessibility Matters

With an installed profile depth of less than 4", the display solution meets the requirements of the Americans with Disabilities Act (ADA) Standards for Accessible Design.

InfoComm 2024 Best of Show

Digital Signage Magazine experts recognized the up-close application potential of the Planar Luminate Ultra W Series and named it an InfoComm 2024 Best of Show Winner.

Off-the-Shelf Video Walls

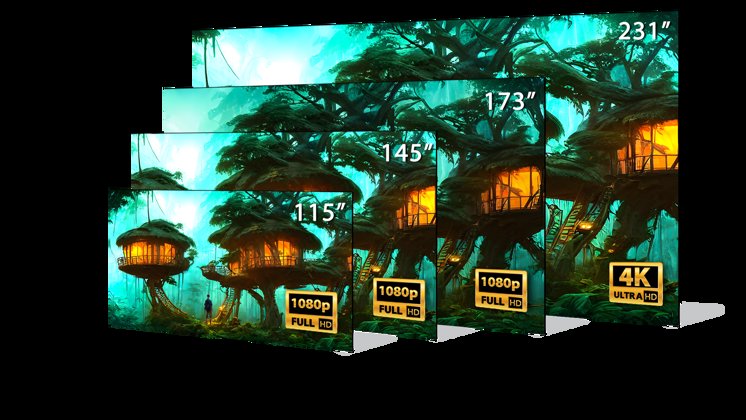

Planar Luminateultraw Diagram Left 1714X964 Image

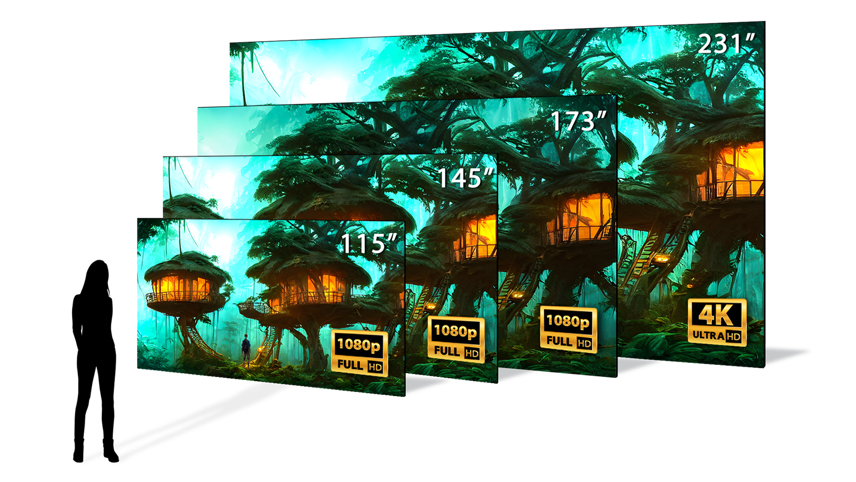

Pre-Configured Sizes & Resolutions

Planar® Luminate Ultra W Complete™ Full HD or 4K MicroLED video walls are available in convenient sizes and resolutions to reduce configuration time and complexity. Simply select the diagonal size and resolution that best suits the application, and receive everything in one complete, no-hassle solution.


  • LED Display Cabinets
  • Video Controller
  • Wall Mounts
  • Trim
  • Cables
  • Spare Modules

Available Sizes

  • 115"
  • 145"
  • 173"
  • 231"

If none of the pre-configured video walls is quite right for your outdoor space, Planar Luminate Ultra W Series' modular design lets you to create video walls with custom sizes, shapes and resolutions.

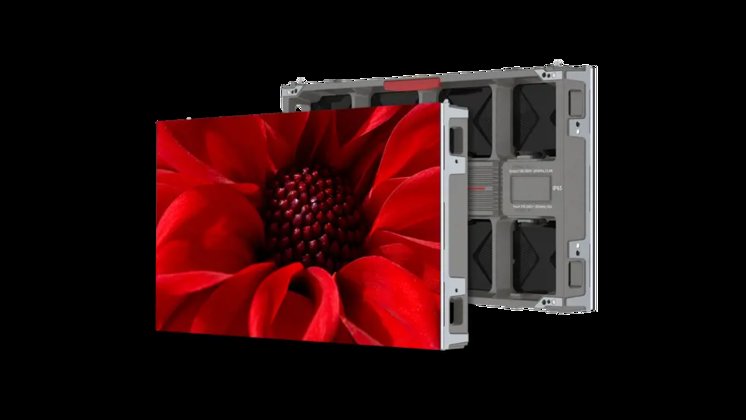

Design exactly the right solution using the 29", 16:9 cabinets available with 1.3, 1.6, & 2mm pixel pitches.
