Large Format LCD & Video Wall Accessories
Wall Mounts and Stands
A variety of wall mounts and stands are available for Planar large format LCD display and LCD video wall solutions. They feature high weight capacities, are built for commercial applications and are fully adjustable with tilt and rotational movement.
Please note: Refer to the display weight and VESA hole pattern in its specifications table to ensure compatibility.
| Part Number | Accessory | Accessory Description | Supported Display Weight (max.) | Supported VESA Hole Pattern | Orientation | Supported Display Series |
|---|---|---|---|---|---|---|
|

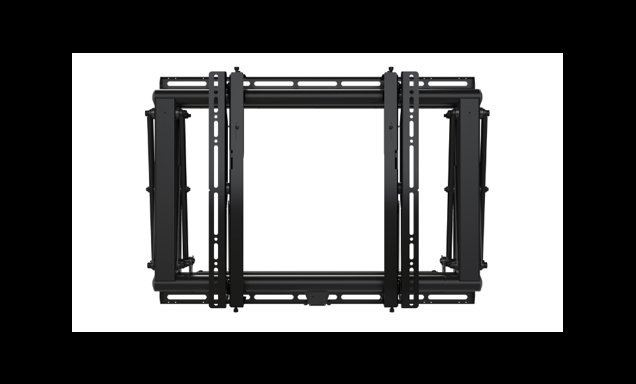

998-0368-00
|
VMT-MXL
Video Wall Mount |
Video Wall Mount. Spring-loaded scissor extension and integrated service kickstand for rear display access. Precise lateral alignment capability.
|
160 lbs
|
up to 600mm x 400
|
Landscape only
|
|
|

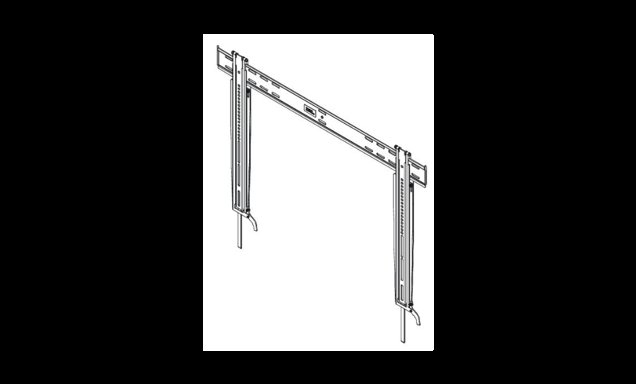

997-6338-00
|
USM-EPL
Wall Mount |
Ultra slim flat wall mount 0.4 in. depth, lateral shift, cable kickstand for easy access.
|
125 lbs
|
up to 800mm x 525mm
|
Landscape only
|
|
|

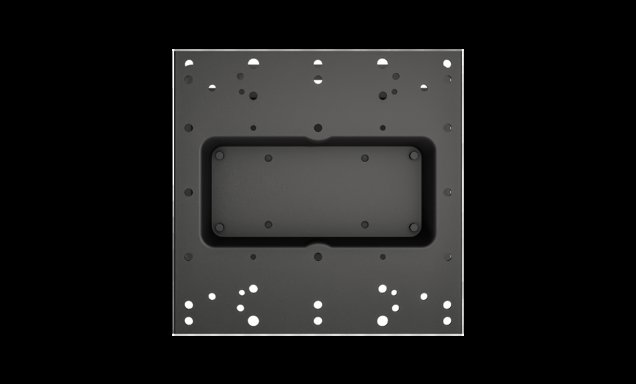

998-3329-00
|
FWMS-MXL
Wall Mount |
ADA-compliant fixed wall mount for displays up to 43", 1.57in depth
|
132 lbs
|
up to 200mm x 200
|
Landscape or Portrait
|
|
|

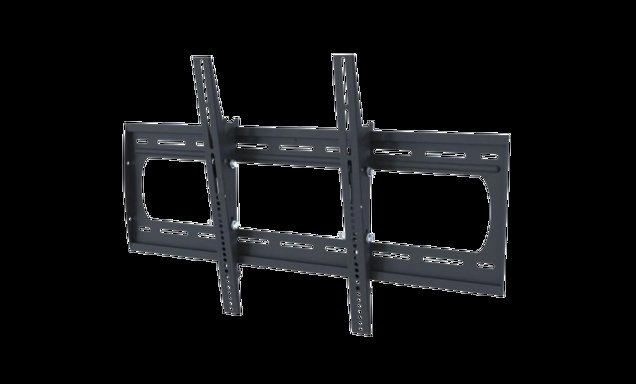

997-3550-01
|
WMT-MXL
Wall Mount |
Adjustable Tilting Wall Mount, 2 in. depth, 10 degrees of continuous tilt, post-installation leveling capability.
|
175 lbs
|
up to 800mm x 529mm
|
Landscape only
|
|
|

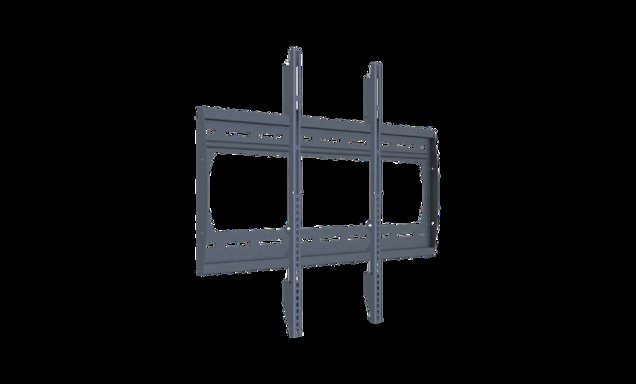

997-4389-01
|
FWM-MXL
Wall Mount |
Flat Wall Mount 1 in. depth, post-installation leveling capability, universal hardware kit and lock security barrel included.
|
175 lbs
|
up to 815mm x 529mm
|
Landscape only
|
|
|

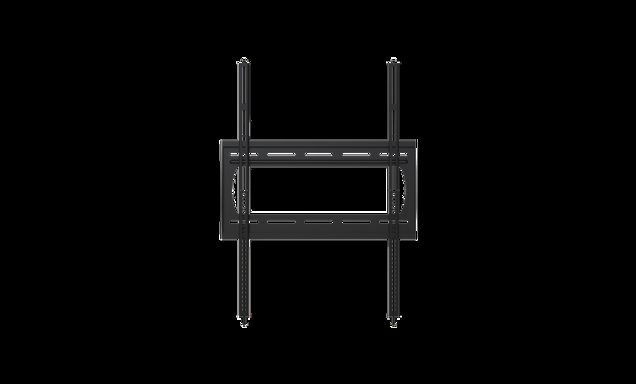

997-7064-00
|
FWMP-MXL
Wall Mount |
Fixed Wall Mount 1 in. depth, post-installation leveling capability, universal hardware kit and lock security barrel included.
|
175 lbs
|
up to 530mm x 707mm
|
Portrait only
|
|
|

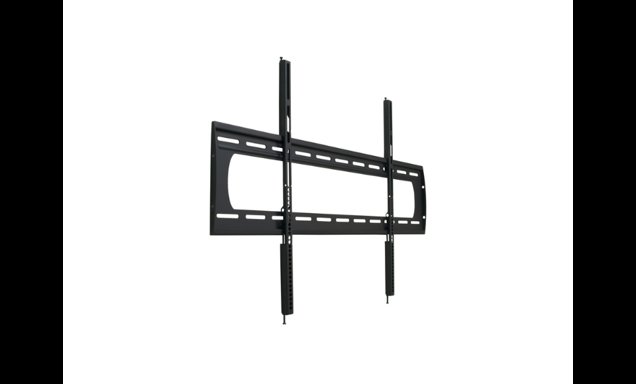

955-0217-00
|
FWMG-MXL
Wall Mount |
Fixed Wall Mount for ultra large displays.1in. depth, post-installation leveling, universal hardware kit and lock security barrel.
|
300 lbs
|
up to 1113mm x 707mm
|
Landscape only
|
|
|

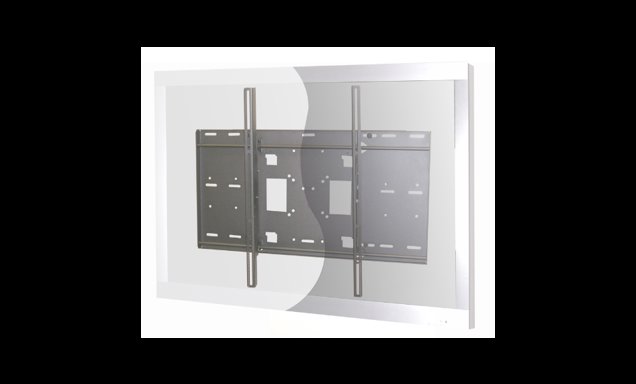

955-0679-00
|
FWMV-MXL
Wall Mount |
Tilting Wall Mount for ultra large displays. 12 degree tilt range. Universal hardware kit included.
|
300 lbs
|
up to 899mm x 735mm
|
Landscape or Portrait
|
|
|
955-0816-00
|
Mount, Chief PSMH2840
Wall Mount |
Fixed wall mount for ultra large displays, 2.92in depth. Exclusive Q-Latch Mounting System for quick installation and quick release.
|
500 lbs
|
up to 800mm x 400mm
|
Landscape only
|
|

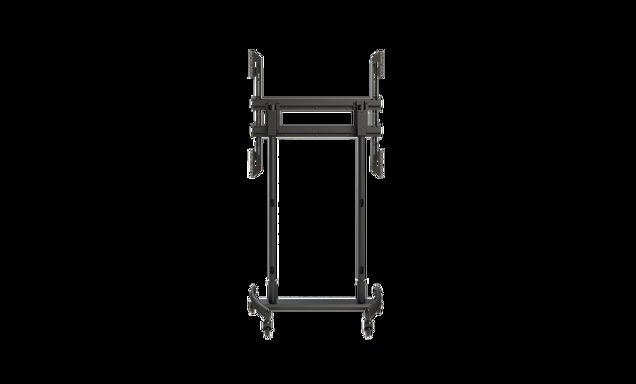

| 955-1004-00 |
LRC-UPL
Mobile Cart
|
Ultra large rolling cart with locking 4in casters. | 300 lbs | up to 1010mm x 960mm |
Landscape or Portrait
|
|
| 955-0877-00 |
Planar Profile Mount: PRX
Wall Mount - URX only |
Planar Profile mounting system for URX75, URX85, URX100 Landscape models and URX85, URX100 Portrait models
|
Landscape (all) or Portrait (excluding URX75)
|
|||
| 955-0876-00 |
Planar Profile Mount: PRX75P
Wall Mount - URX only |
Planar Profile mounting system for URX75 Portrait models
|
Portrait (URX75 only)
|
|||
| 955-0679-00 955-1006-00 |
FWMV-MXL Wall Mount
Expansion Brackets
|
Tilting Wall Mount for ultra large displays. 12 degree tilt range. Universal hardware kit included. Extension brackets - 955-1006-00 - must be ordered separately in order to support displays up to 1000mm x 600mm when mounted in Portrait orientation. | 300 lbs | up to 1000mm x 1000mm |
Portrait only
|
