Planar DirectLight Ultra Series

LED Video Wall Displays

Planar DirectLight UltraThe Planar® DirectLight® Ultra™ Series of LED video walls offers always-on, high performance, high resolution display experiences with the finest pixel pitches from 0.6 to 1.2 millimeters for mission-critical and the most refined applications. Planar DirectLight Ultra Series presents several display technology advancements that, in combination, deliver big performance.

This premium line of fine pitch LED video wall displays features models with MicroLEDs, off-board power supply, Planar® ActivAlign™ technology and the powerful Planar® WallDirector™ Video Controller (VC) with its corresponding video wall management software.

  • Advanced MicroLED technology
  • 0.6, 0.7, 0.9, & 1.2mm pixel pitches
  • Planar ActivAlign alignment system
  • Full-featured processing with Planar WallDirector Video Controller
  • Advanced software for control & monitoring
  • Designed for 24x7 reliability
  • ADA compliant
  • Front installation & serviceability

Select a model:

Planar DirectLight Ultra 0.6

LED Video Wall

The Planar® DirectLight® Ultra™ 0.6 millimeter MicroLED video wall offers very fine pixel pitch and always-on, high performance, high-resolution display experiences for mission-critical and refined applications. Planar DirectLight Ultra 0.6 presents several display technology advancements that, in combination, deliver big performance. It features off-board power supply, proprietary alignment technology and the powerful Planar® WallDirector™ Video Controller with its corresponding video wall management software. It is also covered by the Planar® EverCare™ Lifetime Limited Warranty.

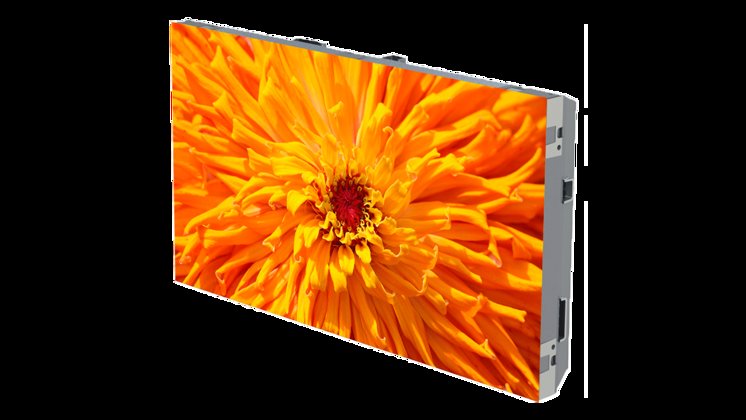

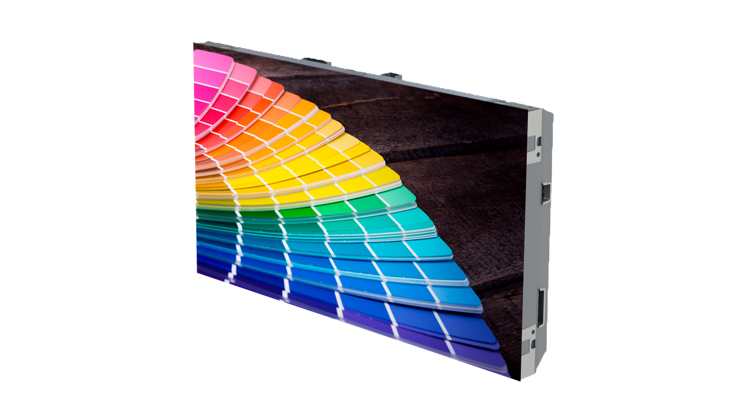

Planar Directlight Ultra Cabinet 475X263
Specification: Detail:

Built to Last & Covered for Life

Planar DirectLight Ultra Series video walls are manufactured in the United States and are compliant with U.S. Trade Agreements Act (TAA) regulations. Each video wall display comes with the exclusive Planar® EverCare™ Lifetime Limited Warranty, which means everything from the sub-pixels to the Controller is covered for as long as the video wall is used in a fixed location. Multi-year leasing options are also available through the Planar® EverNew™ Managed Service Program.

MicroLED Diagram

MicroLED = Big Power

Most Planar DirectLight Ultra Series models feature MicroLEDs that are less than half the size of the smallest standard LEDs but deliver up to three times more brightness, excellent visual performance and color uniformity. They are also more energy efficient, requiring less power and producing less heat at a given brightness. They offer more vivid colors and leave more room for a black canvas, providing greater detail with dark images and better overall contrast. The MicroLED design has a smaller footprint and reduces light blockage and ambient-light reflection. Their small size facilitates the highest resolution possible for LED, even in smaller video walls.

Ultra Performance

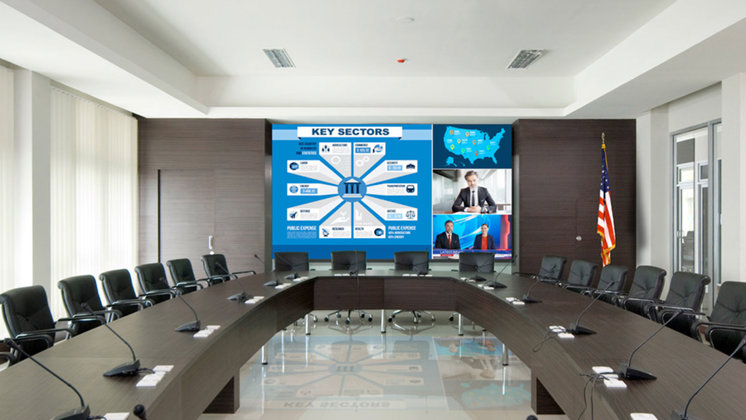

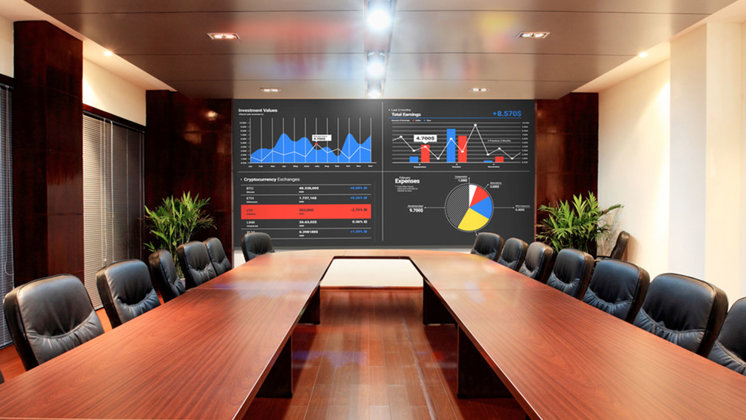

Planar DirectLight Ultra Series visually supports the most demanding use models for control rooms, boardroom presentations, or media-heavy applications. It delivers the best color reproduction and uniformity, highest brightness, greatest performance with dark content, highest resolutions and is also ready for High Dynamic Range (HDR) content.

The displays offer mission-critical design for 24x7 reliability and are designed to maximize technological advancements for mounting, alignment, space constraints, reliability, fast service, power efficiency, scalability and long life.

Planar DirectLight Ultra Cabinet
Planar DirectLight Ultra Alignment Diagram

Always Aligned

The convenient, full front service Planar DirectLight Ultra Series features a pixel-perfect display even at 0.6mm pixel pitch. To maintain visual performance over time, it has Planar ActivAlign, proprietary self-adjusting alignment technology that combats issues such as vibration and thermal expansion that can cause LED modules to shift and disrupt the seamless visual experience. Planar DirectLight Ultra Series maintains module positioning through these events, reducing the need for repeated maintenance.

Efficient & Reliable Remote Power

The included Planar® Remote Power Supply (RPS) is takes heat, depth, noise, weight, service points and electrical outlets away from the video wall and into a rack room. Featuring n+1 redundant, hot swap power modules, the Planar RPS is available with 110V and 220V power and features a low power standby mode when not operating 24x7.

Planar DirectLight Ultra Series is more energy efficient, at the same brightness, than other LED displays through Planar’s proprietary DriverIC. It helps extend the life of the display with lower heat emission, climate control requirements and power consumption.

Planar RPS with Callouts

Advanced Video Wall Processing

Planar DirectLight Ultra Series features includes the Planar WallDirector VC, a compact and scalable video processor, and web-based video wall management software. The application simplifies video wall set-up, configuration, operation and monitoring. Planar WallDirector VC is a 1U rack mount device that captures multiple 4K inputs and drives the video wall at native resolution while providing signal extension over CAT or fiber connections. It also scales modularly to support larger video walls. Multiple video controllers can be stacked, but act as one, for more video inputs.

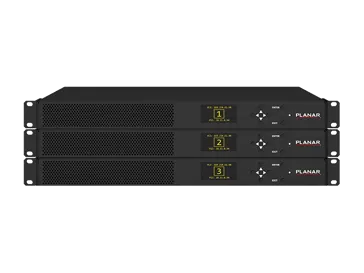

Planar WallDirector Video Controller

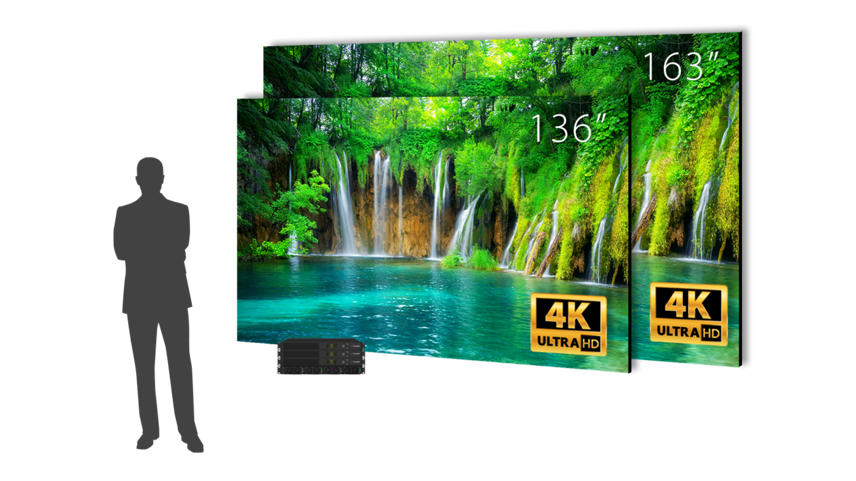

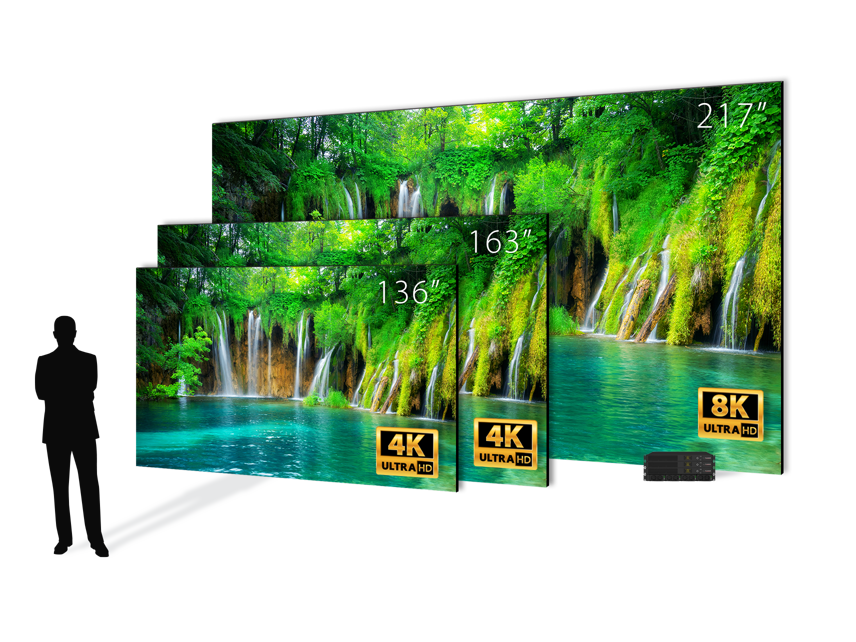

Planar DirectLight Ultra Complete

Off-the-Shelf Option

If creating a customized video wall seems like too much, consider a pre-packaged Planar® DirectLight® Ultra Complete™ video wall display. It reduces the time and complexity of designing and installing a video wall, with everything packaged into a complete solution. Simply select the MicroLED video wall size that best suits the environment and application, and receive the LED display cabinets, remote power supplies, cables, spare modules, wall mounts, trim and video controller all included. Models are available with 4K resolution in 108”, 136” and 163” diagonal sizes, and 8K resolution in 217”.

Stanley A. Milner Library

Immersive Digital Experience Inspires Imagination and Learning at Revitalized Edmonton Library

The Stanley A. Milner Library is the flagship branch of the Edmonton Public Library (EPL) and receives over 1.2 million visitors each year. The library recently underwent a major revitalization project that included a complete interior renovation to add new spaces and 21st-century library amenities. EPL engaged digital services provider AVI-SPL on a collaboration to construct a…

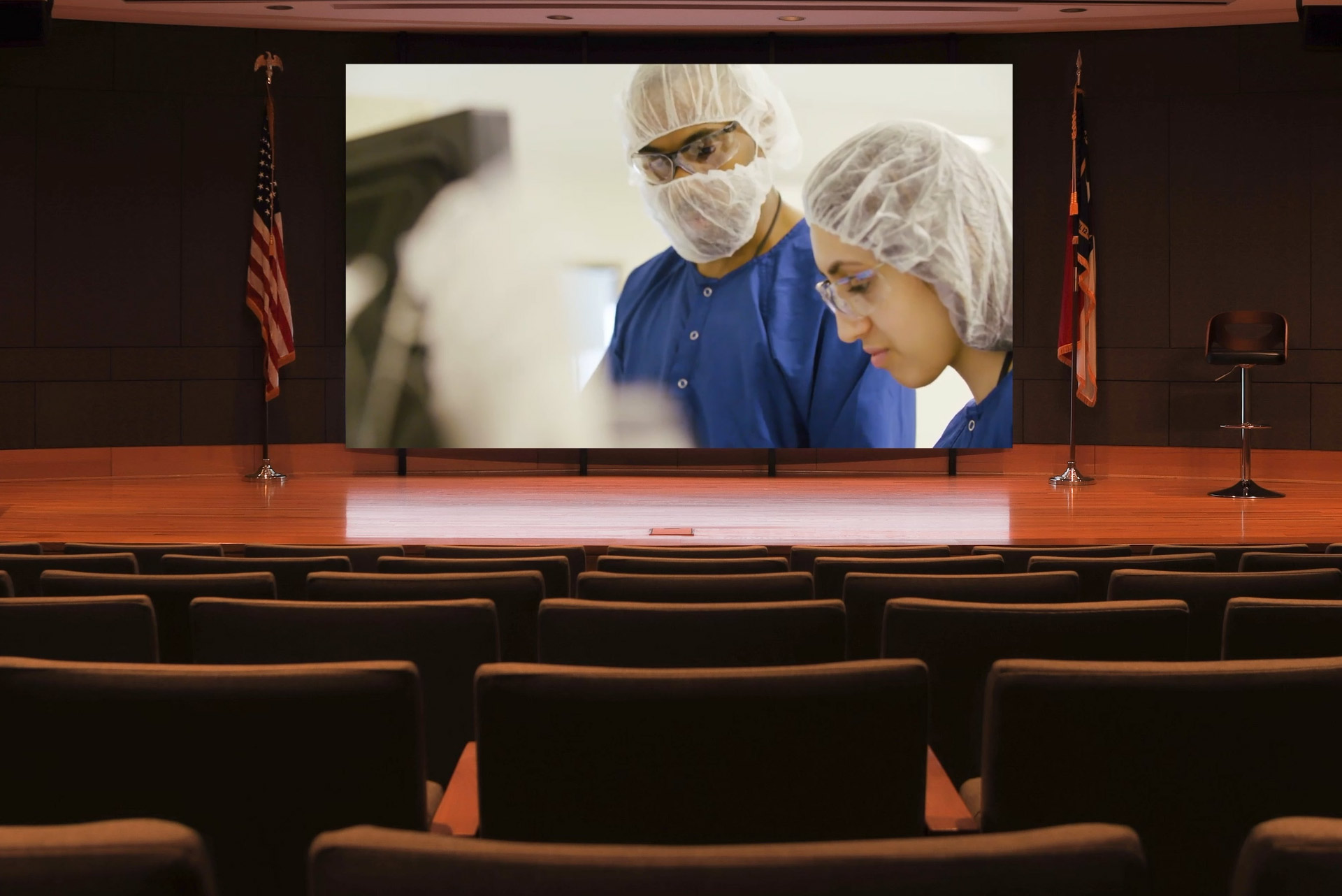

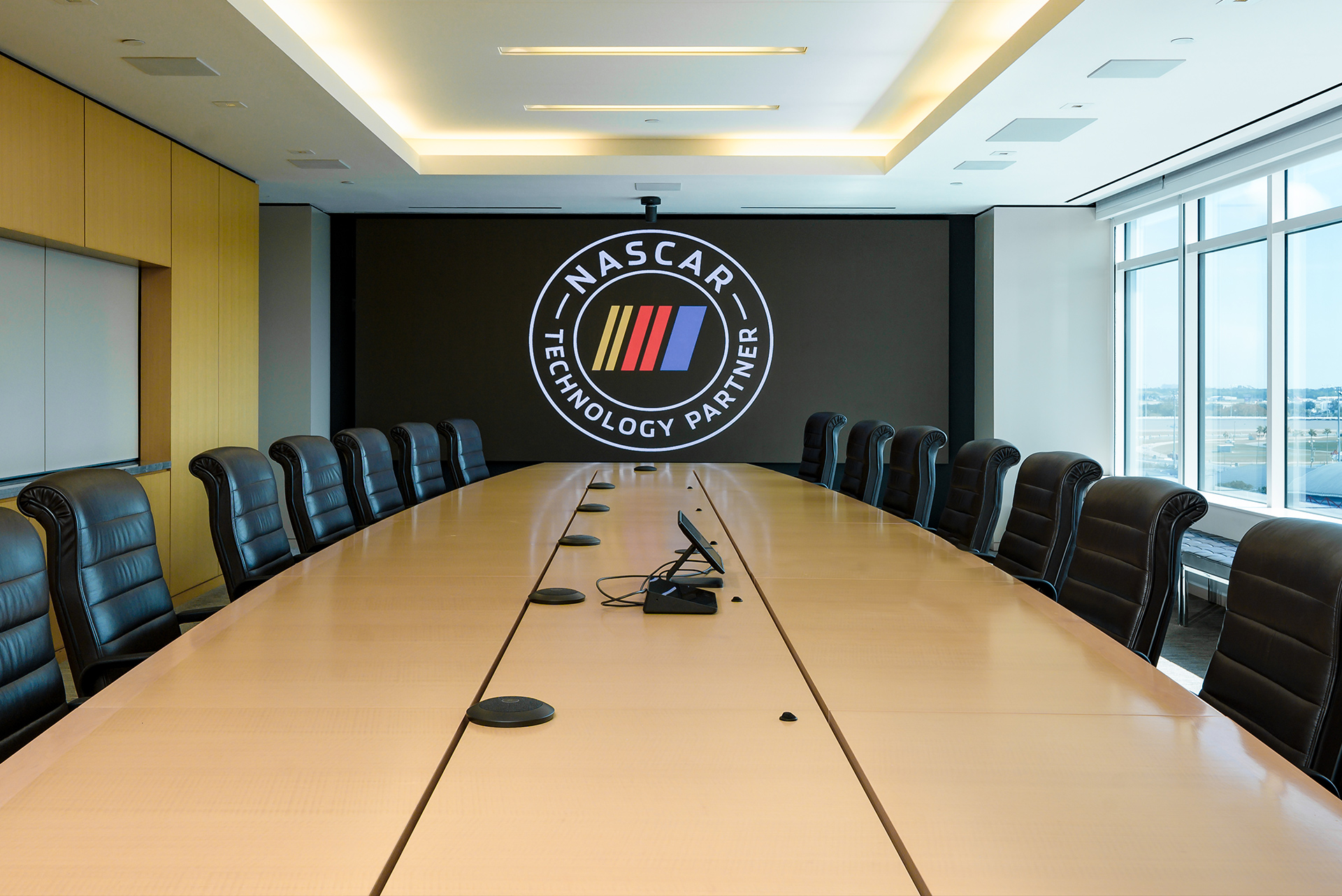

More LED Video Wall Case Studies
