The Planar® VM Series is a line of LCD displays that deliver a feature-rich video wall solution for demanding 24x7 and high ambient light applications. With a variety of sizes, bezel widths and brightness levels, the Planar VM Series offers a nearly seamless video wall solution and compelling value to fit an organization's needs.

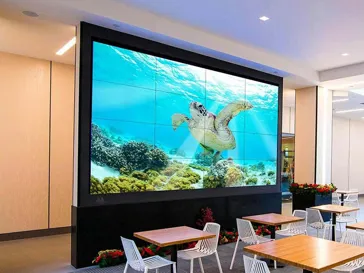

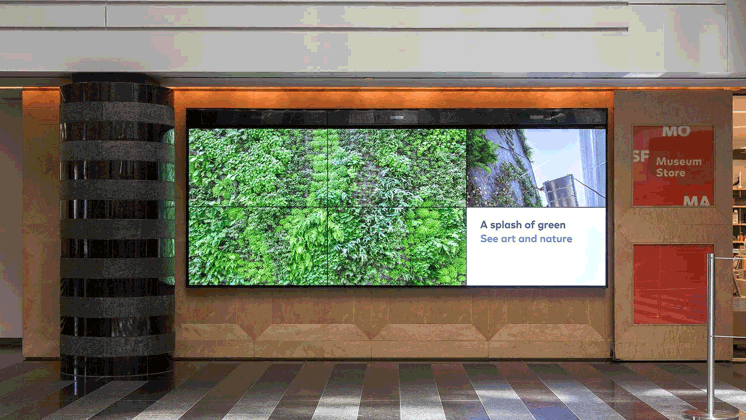

The Planar VM Series features 49" or 55” Full HD LCD displays with tiled bezel widths of 0.88, 1.8 or 3.5mm, and between 450 and 700-nit brightness. The energy efficient Planar VM Series delivers high reliability to meet the demands of digital signage applications including retail, hospitality, corporate lobbies, casinos and museums.

Leyard and Planar are proud to offer Planar VM Series video wall displays that have earned the U.S. government's ENERGY STAR® label.

Designed for High Performance

  • IPS technology provides outstanding viewing angles and contrast
  • 4K@60Hz DisplayPort and HDMI connectivity including HDCP 2.2 compatibility

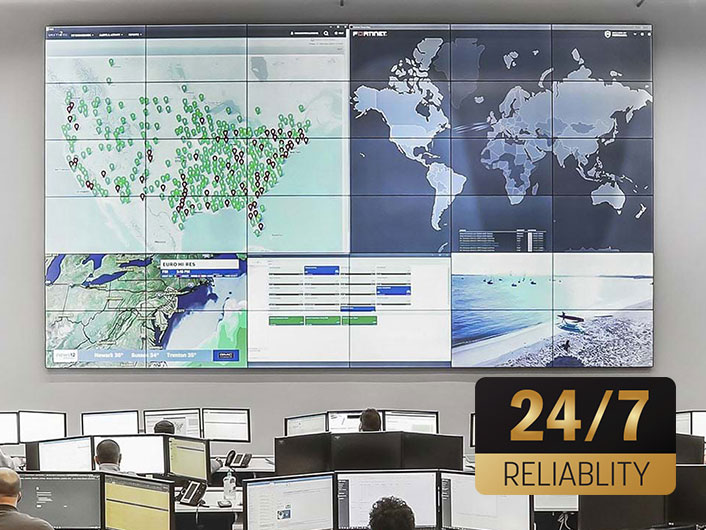

  • 24x7 operation and reliability to support extended use
  • Source failover to ensure continuous on-screen activity without downtime
  • Fanless display

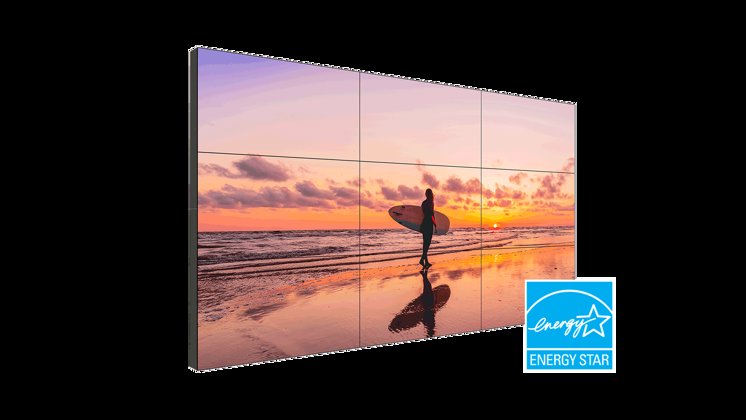

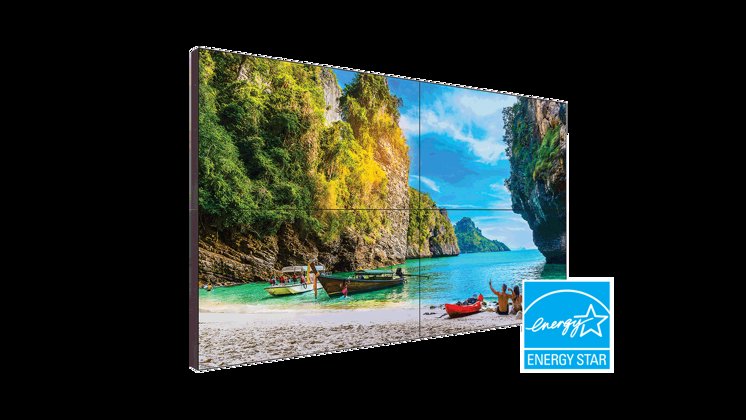

  • ENERGY STAR® certified display models

Optimized for Tiled Installations

  • Available in 49" or 55"
  • Tiled bezel widths of 0.88mm, 1.8mm or 3.5mm
  • Built-in video wall scaling to supports up to 10x10 display configurations
  • VESA mounting compatibility
  • Multiple daisy-chain signal support (DisplayPort, HDMI, DVI, and VGA)

Video Wall Versatility

  • Mountable in landscape or portrait orientation
  • OPS (Open Pluggable Specification) slot enables seamless integration of compatible digital signage hardware
  • Multiple brightness options of 450 and 500-nit (LX models) and 700-nit (MX models) for optimized viewing in different ambient light environments



  • 49" and 55" LCD video wall display with tiled bezel width as small as 0.88mm
  • Full HD resolution
  • Models with nit brightness ranging from 450 nits to 700 nits
  • 4K at 60Hz connectivity with loop through and built-in video wall scaling up to a 10x10 array
  • Fanless display
  • Designed for 24x7 operation
  • ENERGY STAR® certified displays



Select a model:

Planar VM55MX-M

LCD Video Wall

The Planar® VM55MX-M is a 55" tiled LCD video wall display with a 0.88mm tiled bezel width and 700-nit brightness for 24x7 digital signage applications. Featuring IPS panel technology, the Planar VM55MX-M has wide viewing angles and local dimming for greater contrast. 4K@60Hz video and RS-232 and IR control loop through simplifies tiling for video walls up to 10x10. With support for landscape or portrait mounting and an integrated OPS slot, the Planar VM55MX-M delivers integration flexibility. To facilitate installation, optional trim pieces and mounts are also available. The Planar VM55MX-M is designed to meet a wide range of applications including retail, hospitality, lobbies, or museums.

The Planar VM55MX-M is an ENERGY STAR® certified video wall display.

Specification: Detail:

Product Images

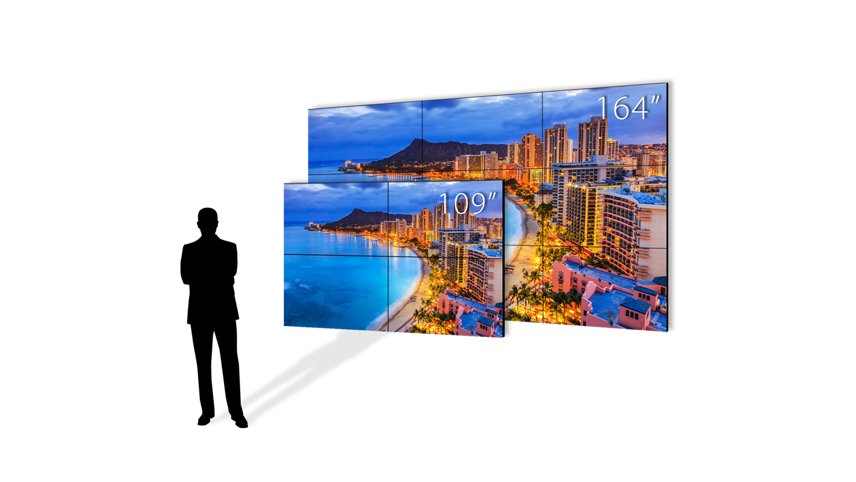

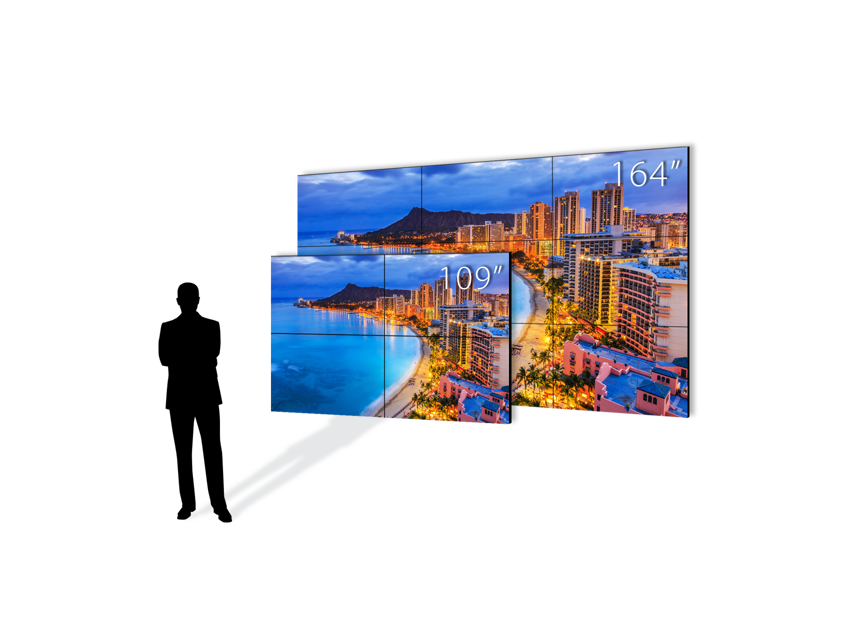

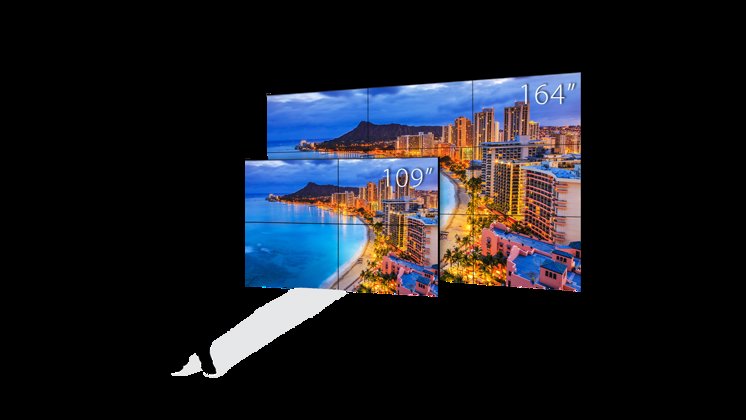

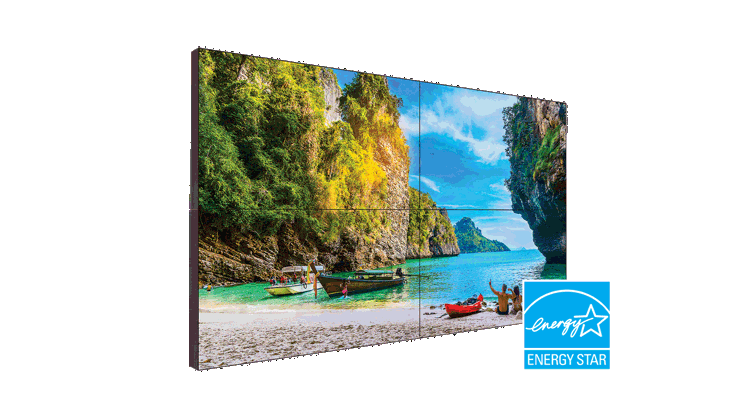

Planar VM Series LCD Video Wall_1920x1080 - hires.png
Low Res | High Res
Low Res | High Res

Planar VM Series Models

Explore by Model Diagonal Tiled Bezel Width Resolution Brightness
VM55MX-M 55" 0.88mm 1920x1080 700 nits Certified
VM55LX-M 55" 0.88mm 1920x1080 500 nits Certified
VM55MX-X 55" 1.8mm 1920x1080 700 nits Coming Soon
VM55LX-X 55" 1.8mm 1920x1080 500 nits Coming Soon
VM55LX-U 55" 3.5mm 1920x1080 500 nits Coming Soon
VM49MX-X 49" 1.8mm 1920x1080 700 nits Certified
VM49LX-U 49" 3.5mm 1920x1080 450 nits Certified
