Planar WallDirector Video Controller

Scalable Video Wall Control

Select a model:

Planar WallDirector VC4H-BP+

Planar® WallDirector™ VC4H-BP+ is a compact and scalable video processor designed to drive up to four Full HD Planar video wall display sections using the powerful web-based Planar® WallDirector™ OS management application.

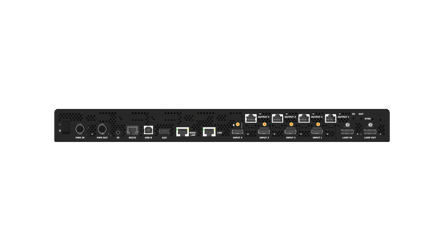

Planar Walldirector VC4 Back 3840x2160
Specification: Detail:
Model Name VC4H-BP+
Supported Video Walls Planar DirectLight Ultra Series, Planar DirectLight X Series, Clarity Matrix G3 LCD Video Wall System
Cabinet Size 1U Rack-Mounted Controller, 19" Rack"
Maximum Output Resolution Up to 4 Full HD (1920x1080) Display Sections, 8.3M Pixels
Video Inputs 4x HDMI 2.0 (w/HDCP 2.2); 1x DisplayPort 1.2
Video Outputs 4x RJ45 8P8C, 1x DisplayPort 1.2
Optional Fiber Extender Yes
Maximum Distance from Video Wall Standard: 200ft (60m) | Fiber Extension: 1000ft (300m)
Control IR Remote Control, RS-232, USB, Network, Planar WallDirector Software
Controller Status Diagnostic LEDs, Planar WallDirector Software Health Monitoring and Alerts
Sync Mini BNC In/Out
Image Scaling Planar Big Picture Plus Windowing, Planar WallSync, PiP, 4K at 60Hz Upscaling and Downscaling
Windowing 13 per Video Controller
