A key feature of the Leyard® DirectLight® LED Video Wall System is the Leyard® EasyAlign™ Mounting System, a mounting solution designed specifically for Leyard DirectLight LED video walls to deliver perfect alignment with ultra-fine six-axis adjustments. Leyard EasyAlign facilitates stunning, seamless images and ensures Leyard DirectLight video walls have the thinnest profile on the market, making it ideal for retail, public venues, corporate lobbies or virtually any other space-constrained indoor application.

Leyard EasyAlign eliminates the need for a recessed wall or an additional mounting frame which allows Leyard DirectLight LED video walls to me mounted directly to a wall surface.

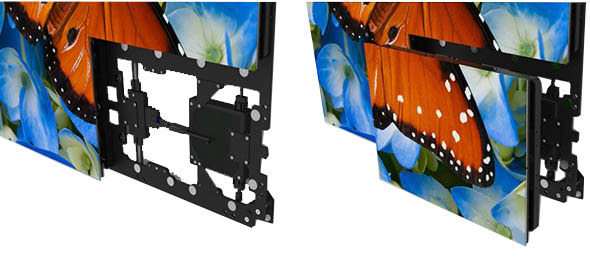

The Leyard EasyAlign Mounting System features a three-part construction that reduces the time needed for installation and service. Leyard EasyAlign eliminates the need for a recessed wall or an additional mounting frame which allows Leyard DirectLight LED video walls to me mounted directly to a wall surface.

Simplified Installation and Service

For simplified service, mounting brackets are designed so one person can install and remove each individual LED display. In addition, front service access to all components allows for efficient and cost-effective in-place servicing. When an LED display needs to be accessed or removed, it is easily accomplished without the need to remove other displays within the video wall. Lockable LED displays provide added safety and security.

With the Leyard EasyAlign Mounting System, Leyard DirectLight LED video walls measure a mere four inches in depth from screen-to-wall, as opposed to other LED video wall designs that require significantly more clearance. As a result, Leyard DirectLight video walls are compliant with the American's with Disabilities Act (ADA) requirement for protruding objects of less than four inches.

Precise Alignment

The Leyard EasyAlign Mounting System features two levels of Z-axis adjustment, in addition to X- and Y-axis adjustment that facilitate precise six-axis alignment ensuring uniform, seamless module placement and perfect compatibility between the mount and Leyard DirectLight LED video wall.

Creative Designs Possible

Forward tilting, concave and 90° corners are all possible with Leyard EasyAlign and retain front access capabilities.

  • Ultra-fine six-axis adjustment to enable perfectly aligned LED video walls
  • Ultra-thin profile
  • Single person installation and removal of LED display modules minimizes service labor costs
  • Front service access to all components allows for effective in-place service
  • Lockable LED display modules provide added safety and security
